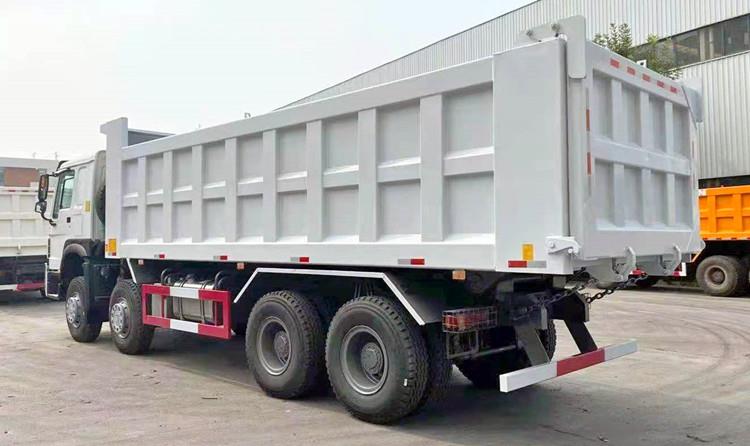

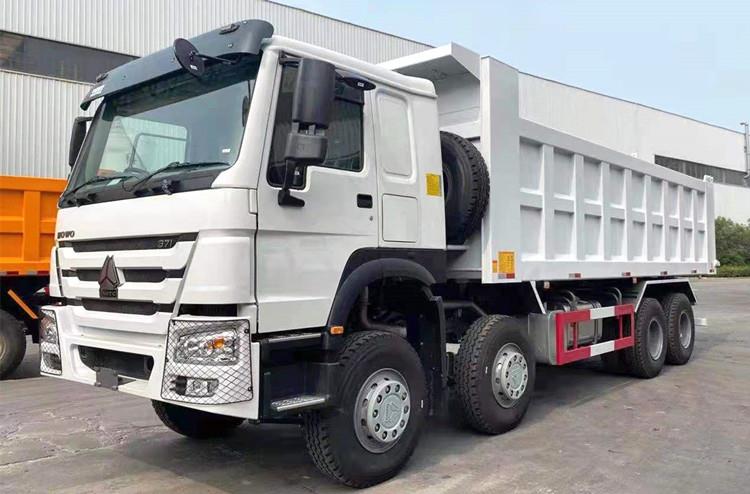

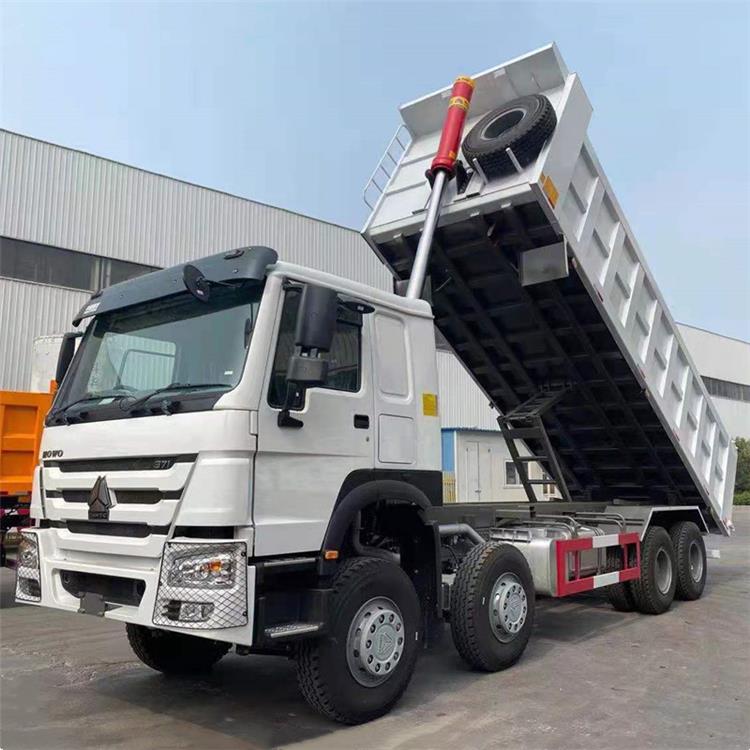

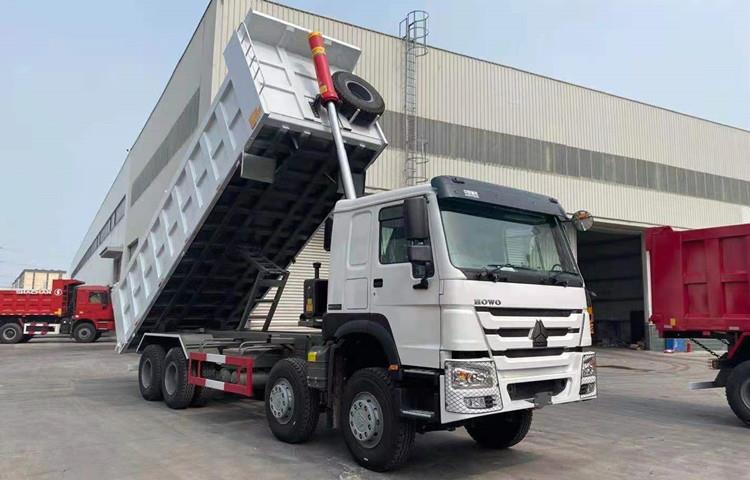

Howo 420 8x4 Dump Truck

Description:

Howo 8x4 dump truck for sale has won the hearts of so many African customers due to its power, stability, and low cost of maintenance.

Sinotruk howo 12w dump truck can be used for conveying sand, chippings, and other materials from one place to another.

According to clients' requirements, we can customize different loading capacity and volume of sinotruk howo 420 dump truck.

Sinotruk Howo 420 | Howo 12w 8x4 Dump Truck for Sale in Tanzania Dar es Salaam

Sinotruk Howo 420 | Howo 12w 8x4 Dump Truck for Sale in Tanzania Dar es Salaam

Sinotruk Howo 420 | Howo 12w 8x4 Dump Truck for Sale in Tanzania Dar es Salaam

Sinotruk Howo 420 Specifications:

MODEL: ZZ3317N3567W

ENGINE:

Engine model: WD615.47, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water

cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system

Maximum output: 371PS (273kW) at 2000 rpm

Maximum torque: 1560Nm at 1200-1500rpm

Bore: 126mm

Stroke: 130mm

Displacement: 9.726L

CLUTCH: SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance

TRANSMISSION: Transmission, model HW19710, 10 forward and 2 reverse  Ratio: 5.73

FRONT AXLE: New HF9 series, with drum brake system

REAR AXLE: HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.

STEERING: ZF8118, hydraulic steering with power assistance  Ratio: 22.2-26.2:1

WHEELS&TYRES:

Rims: 8.5-20,10 hole-steel

Types: 12.00R20

CARGO BODY: 7300*2300*1500, bottom 8mm, side 6mm, Front lift system (Other sizes are optional)

DRIVER CAB:

Long cab, all steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds, adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner

DIMENSIONS(in mm):

Wheel base (mm): 1800+3500+1350

Front wheel track (mm): 2022/2041

Rear wheel track (mm):1830/1830

Overhang(front/rear) (mm):1500/2295

Approach angle(°):19

Departure angle(°):20

Overall Dimension (mm):11745x2496x3550

WEIGHT(in kg):

Permissible loading capacity (kg):16000

Dead weight (kg):15000

Gross vehicle weight (kg):31000

Front axle loading capacity (kg):2*9000

Rear axle loading capacity (kg):2*16000

PERFORMANCE:

Maximum driving speed(km/h):75(reference data)

Maximum gradeability (%):36

Minimum ground clearance(mm):314

Minimum turning radius (m):15

Fuel consumption(L/100km):40(reference data)

Advantage:

For the front axle, howo 8x4 dump truck is equipped with the HR9 front axle, using a multi-leaf spring suspension of 9 steel plates, the front axle brake is disc brakes, and a protective cover is added to the entire braking system, which can effectively prevent splash to damage the brake disc and caliper.

The rear axle uses SINOTRUK  AC16 model wheel-side reduction axle with automatic adjustment arm. The rear axle speed ratio is 4.77. The rear axle uses traditional drum brakes, which has stronger braking force. In addition, the rear axle is also equipped with a lateral stabilizer bar, It provides well guaranteed for driving stability when the vehicle is running on complex road conditions.

About SINOTRUK:

SINOTRUK is China's first heavy duty truck manufacturer, initially founded in 1956 and the cradle of China's heavy duty truck industry. SINOTRUK once manufactured China's first heavy duty truck, and it is China's first company to comprehensively introduce foreign heavy duty truck manufacturing technology of complete vehicle.

Today, SINOTRUK has developed into China's largest heavy duty truck manufacturing base and made significant contributions to the development of China's heavy duty truck industry and national economic growth.

SINOTRUK has been adhering to implementing independent innovations, carrying out its leading strategy in technologies and building its core competitiveness with intellectual property rights. It has the most patents in China's automotive industry.

SINOTRUK’s main truck models include HOWO, HOWO A7, HOHAN, main truck types include truck tractor, tipper truck, cargo truck, truck chassis, fuel tanker truck, water tank truck, and other special trucks.
